Пневматическая экстракорпоральная ударная волновая терапия медицинское устройство
| Цена за штуку: | 1560 USD |
|---|---|
| Количество минимального заказа: | 1 Unit |
| Подробности Упаковки: | Ударное оборудование для волновой терапии Медицинское устройство со стандартным экспортным пакетом с защитной пеной |
|---|---|
| производительность: | 1000pcs/week |
| марка: | Депрессия |
| транспорт: | Express,Ocean,Air |
| Место происхождения: | Хэнань |
| Способность поставки: | 1000 Unit/Units per Week |
| Порт: | Shanghai,Tianjin,Qingdao |
Описание продукта
Физиотерапевтическое оборудование > Устройство терапии ударной волны > Пневматическая экстракорпоральная ударная волновая терапия медицинское устройство

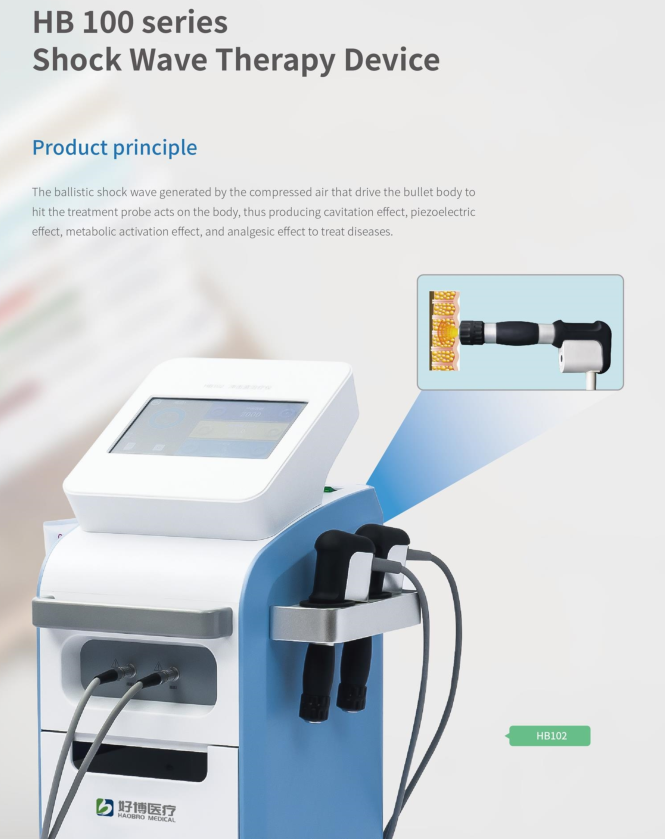

HB101 Shock Wave Therapy Device
Технические параметры:
1. A shock-wave therapeutic apparatus developed and produced by international advanced
pneumatic ballistic technology is used;
2. Cart-based integrated model, trolley design with locking universal wheel, flexible rotation
at various angles, shock wave treatment gun in line with ergonomic design, featuring
simple operation;
3. Power supply standard: AC voltage 220V ± 10%, power frequency: 50Hz ± 2%; rated input
power: ≤ 300VA;

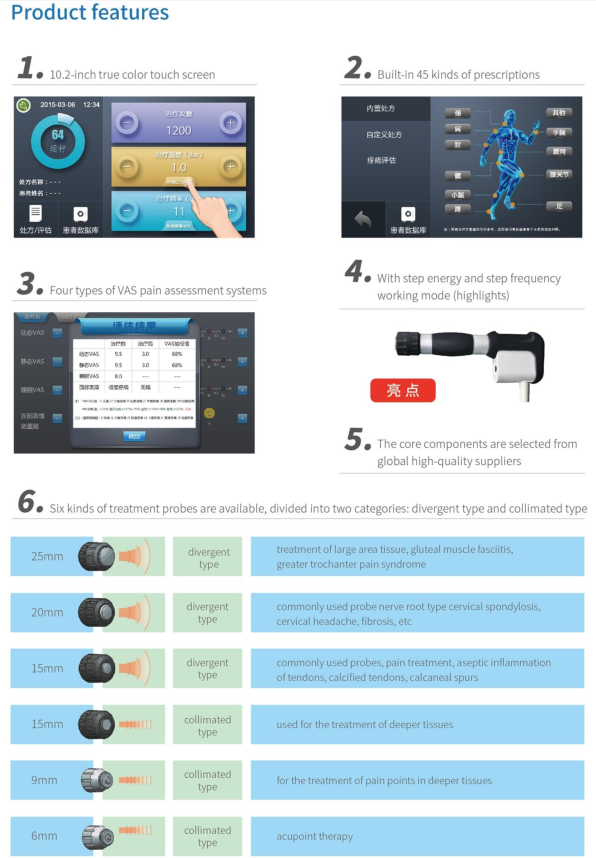

4. 10.2-inch true color touch screen, with the resolution of 1024*600dots;
5. Working pressure: 1 ~ 4Bar adjustable, the maximum working pressure error does not exceed
±10%, and the step length is 0.1Bar;
6. The working frequency adjustment range is 1 ~ 21Hz, the error does not exceed ±5%, and the
step length is 1Hz;
7. The error between the displayed value and the actual value of the working pressure display
device of the therapeutic apparatus does not exceed ±10%;
8. It has two types of treatment probes, collimation type and divergent type, to meet different
clinical needs;
9. 6 kinds of treatment probes, corresponding to different treatment procedures, to meet
different clinical needs;
Specifications of collimating treatment probe: 6mm, 9mm, and 15mm;
Divergent treatment probe specifications: 15mm, 20mm, and 25mm;
10. The maximum energy flow density is as high as 1.83mJ/mm 2 to achieve the therapeutic
effect (relevant supporting documents can be provided);
11. Built-in 45 kinds of treatment prescriptions for various parts of the body to meet different
clinical needs;
12. Customized prescriptions: patient treatment prescriptions can be freely added and stored to
meet different clinical needs;
13. Counting function: with counting, displaying, and resetting functions, it is convenient to
record the treatment process;
14. Step pressure mode: 50% ~ 90% adjustable, step length 10%, step frequency mode: 50%
~ 90% adjustable, and step length 10%; step output pressure and frequency are beneficial to
improve patients' adaptability to shock wave therapy and to reduce treatment tolerance for
achieving better treatment effect (relevant supporting documents can be provided);
15. Built-in 4 kinds of pain evaluation and evaluation systems: dynamic VAS, static VAS,
sleep VAS, facial expression measurement, which can perform pain evaluation before and
after treatment and automatically pop up the evaluation result window;
16. Patient database management, with the information stored about more than 10,000 patients,
convenient for physicians to perform regular analysis
on the patient's functional recovery and scientific research & investigation work;
17. Treatment counting range: 0 ~ 9999 times; in case of 0 ~ 10, the step length is 1; в случае
10 ~ 100, the step length is 10; in case of 100 ~ 9900, the step length is 100; в случае
9000 ~ 9999, the step length is 99; with humanized design and precise control, it can meet
different clinical needs;
18. The default number of impacts is 2000, the default impact strength is 2.0Bar, and the default
impact frequency is 8Hz. The default treatment parameters are highly adaptable, and can be
quickly and conveniently adjusted to the specific required reatment parameters; Customer-centric, honesty as the foundation, result-oriented
19. The pulse width of the output pressure wave is 300us, and the error does not exceed ±10%;
22. There is a double overpressure safety device to prevent the air compressor from suddenly
increasing in pressure under normal and single fault conditions;
23. Imported core components: original imported air compressor, strong power, and silent
дизайн; imported SMC solenoid valve, with high output stability; for imported barrels, bullet
bodies, and imported parts, customs declaration materials can be provided;
24. Provincial-level high-tech certified products can be provided;
25. The copyright of computer software for this product has been obtained;
26. Equipment net weight: 23kg, size: 425.5mm * 535mm * 994.3mm.
